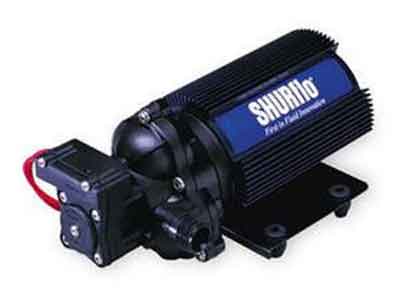

SHURflo 2088 series diaphragm pumps deliver reliable performance in high flow, moderate pressure applications. They are used in a variety of spraying, and transferring applications that require flows of up to 3.6 GPM (13.6 l/min).
They are available in a variety of chemical resistant materials, can be mounted in any position, and are designed for easy maintenance.
- Self Priming up to 12 vertical lift feet (3.7m)
- Built-in check valve (may vary by models)
- Prevents back flow of fluid through the pumps
- Continuous duty motor
- Chemical resistant materials
- Can run dry without damage
| Full details | |
| Suitable uses | Water transfer, spraying applications and dispensing etc. |
| Suitable liquids | Some chemicals, nutrients, sea water and fresh water etc - Click here for material charts |
| Warranty | 12 months National Warranty |
| Materials Used | Pump Head: Ryton Diaphragms: Santoprene Valves: Viton |
| Electrical | Voltage: 12v DC Amp draw: 9.5A Watts: Power lead length: 400mm |
| Pressure switch | Yes |
| Internal Bypass | No |
| Self Prime | Yes |
| Suction Strainer | Not included |
| Liquid Temperature | ?°C Maximum |
| Inlet/Outlet Ports | 1/2" male MSPT |
| Dimensions | Length: 218mm Height: 113mm Width: 127mm |
| Made in: | USA |
| Accessories | Click here for accessory index |
| PSI | Bar | L/Min | Amps |
| 10 | 0.7 | 11.7 | 6.4 |
| 20 | 1.4 | 10.7 | 7.6 |
| 30 | 2.1 | 9.4 | 8.7 |
| 40 | 2.8 | 8.1 | 9.5 |
Rating:
Suitable for:
A wide variety of agricultural and industrial purposes.
What we liked:
Very high quality pumps from a trusted brand Shurflo.
Less than ideal:
Nothing at all, widely used throughout the industry.
