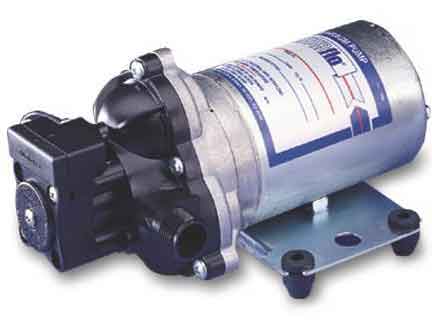

SHURflo 2088 Series demand pumps provide the same reliability as the 12VDC version except in a 24 VDC capacity. They are ideal in industrial applications that require flow rates up to 3.6 GPM (14.0 l/min) with low amp draw.
- Used in a variety of spraying, and transferring applications
- These 24 VDC pumps are ideal for off road or road maintenance equipment applications.
- Continuous duty model have heat exchange fins attached.
- Self Priming up to 12 vertical feet (3.7m)
- Can run dry without damage
- Built-in check valve (may vary by model) prevents back flow through the pump
- Chemical resistant materials
- Automatic demand
| Full details | |
| Suitable uses | Water transfer, spraying applications and dispensing etc. |
| Suitable liquids | Some chemicals, nutrients, sea water and fresh water etc - Click here for material charts |
| Warranty | 12 months National Warranty |
| Materials Used | Pump Head: Ryton Diaphragms: Santoprene Valves: Santoprene |
| Electrical | Voltage: 24v DC Amp draw: 2.73A Watts: Power lead length: 400mm |
| Pressure switch | Yes |
| Internal Bypass | No |
| Self Prime | Yes |
| Suction Strainer | Not included |
| Liquid Temperature | 54°C Maximum |
| Inlet/Outlet Ports | 1/2" male MSPT |
| Dimensions | Length: 3150mm Height: 113mm Width: 127mm |
| Made in: | USA |
| Accessories | Click here for accessory index |
| PSI | Bar | L/Min | Amps |
| 10 | 0.7 | 10.6 | 2.41 |
| 20 | 1.4 | 8.5 | 2.63 |
| 30 | 2.1 | 6.6 | 2.71 |
| 40 | 2.8 | 4.7 | 2.73 |
Rating:
Suitable for:
A wide variety of agricultural and industrial purposes.
What we liked:
Very high quality pumps from a trusted brand Shurflo.
Less than ideal:
Nothing at all, widely used throughout the industry.
