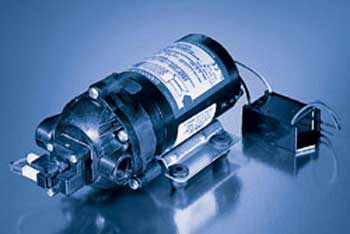

SHURflo 8090 Series demand pumps provide the same reliability as the 115 VAC version except in a 230 VAC capacity. They are ideal in industrial applications that require high pressure with flow rates up to 1.4 GPM (5.3 l/min) low amp draw. They can be mounted in any position, and are designed for easy maintenance.
- Self Priming up to 8 vertical feet (2.4m)
- Chemical resistant materials
- Can run dry without damage
- Built-in check valve
- VDE approval
| Full details | |
| Suitable uses | Water transfer, spraying applications and dispensing etc. |
| Suitable liquids | Some chemicals, nutrients, sea water and fresh water etc - Click here for material charts |
| Warranty | 12 months National Warranty |
| Materials Used | Pump Head: Ryton Diaphragms: Santoprene Valves: EPDM |
| Electrical | Voltage: 230V AC Amp draw: 0.36A Watts: Power lead length: 400mm |
| Pressure switch | Yes |
| Internal Bypass | No |
| Self Prime | Yes |
| Suction Strainer | Not included |
| Liquid Temperature | 82°C Maximum |
| Inlet/Outlet Ports | 3/8" NPT female |
| Dimensions | Length: 213mm Height: 104mm Width: 84mm |
| Made in: | USA |
| Accessories | Click here for accessory index |
| PSI | Bar | L/Min | Amps |
| 20 | 1.4 | 4.5 | 0.21 |
| 40 | 2.8 | 4.0 | 0.25 |
| 60 | 4.1 | 3.6 | 0.29 |
| 100 | 6.9 | 3.0 | 0.36 |
Rating:
Suitable for:
A wide variety of agricultural and industrial purposes.
What we liked:
Very high quality pumps from a trusted brand Shurflo.
Less than ideal:
Nothing at all, widely used throughout the industry.
